STEP 1

Wet material enters the inner cylinder, propelled through the system via a hot gas air stream. The material is continuously lifted by the cylinder flights and showered through the concurrent stream of hot gases. The three full-length interlocked concentric cylinders rotate together, designed for the highest velocity in the inner pass. As lighter particles quickly lose 60% of their moisture and move out of the cylinder, heavier, denser particles are retained until they lose 60% of their moisture.

​

STEP 2

Particles graduate to the next cylinder only when they have shed enough of their moisture to be carried out. Increasing the cylinders' diameters progressively decreases the velocity with each subsequent pass. In this section, the partially evaporated particles are handled more gently, again only graduating to the next pass when they have shed the proper amount of moisture.

​

STEP3

Because of the earlier retention time in the first two passes, the material is relatively uniform by the time it reaches the gentle third pass. This means the product is protected against over- or under-drying and ensures optimal heat use while producing a consistently high-quality end product.

​

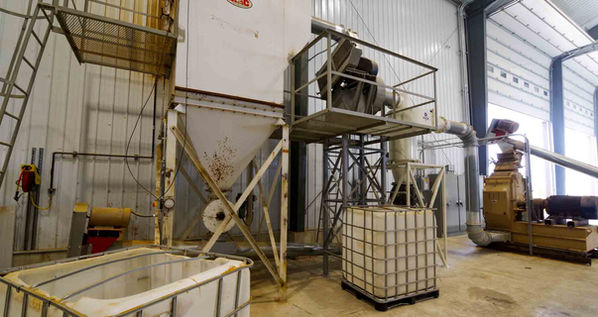

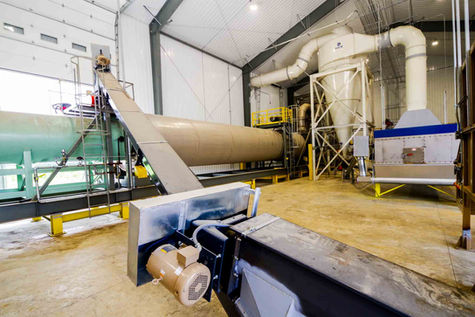

Equipment Advantages

Baker-Rullman’s energy-efficient, high-performance rotary dryers have developed a global reputation in ultimate reliability. Here are some key factors that have contributed to this unequaled record of dependable equipment

• Full-Length Cylinders - All three cylinders in the Baker-Rullman triple-pass dryer system are full-length, giving the customer the maximum effective length and residence time in the smallest possible package.

• Drive Components -  The drum dryer drive arrangement uses engineering-class bushed-roller chain and sprockets, specifically designed for this type of drive application.

• Trunnion Rollers - Our trunnion rollers are made from Class 50 cast iron with a minimum roller-face hardness of 270 BHN. The inboard tapered roller bearings, which have a ‘B-1-’ life of 15 years, allow the rollers to rotate around our stationary roller shaft, which is supported by our hold-down pillow blocks. Baker-Rullman has proven this to be more reliable than the smaller-diameter roller with an integral cast-steel shaft system offered by our competition.

• Drum Tires - Baker-Rullman drum tires are designed and manufactured in a manner significantly different from those used by other vendors. Each tire is hot-forged from a single billet of AISI 1025 steel, then finished-machined. There is no weld seam, and the steel grain structure is oriented for greater wear resistance and strength. It is forged into a “T” cross-section rather than the usual rectangular bar cross-section that other vendors generally supply from rolled and welded bar stock.


Product Advantages

Baker-Rullman’s triple-pass dryer design remains the most trusted dehydration technology for optimizing operating costs, efficiency, and product consistency.

• High BTU efficiency - Better heat utilization, created by longer residence times, robust temperature control, and drum insulation, allows the Baker-Rullman triple-pass rotary drum dryer to achieve efficiencies better than 1,500 BTUs per pound of water evaporated.

• Consistent evaporation -  Baker-Rullman’s triple-pass dryer design protects your product from under- or over-drying. Heavier, wetter particles move more slowly than fine particles, providing uniform drying for all particles. That’s why our rotary dryers have long been known for protecting the protein value of food by-products and the integrity of all types of material.

• Reduced Volatile Organic Compounds (V.O.C.) emissions - V.O.C. emissions can cause pollution problems and restrict your production rates. Heat utilization in a Baker-Rullman system is superior to that of other rotary drum dryers due to its triple-pass rotary dryer design, which eliminates unnecessary V.O.C. emissions. A properly sized and tuned system suited to your input volume is the key to planning an efficient system, and Baker-Rullman engineers are dedicated to accomplishing these goals with each and every installation



​
